Ultra-Fine Spot: Adjustable from 0.1mm for delicate filigree and micro-parts.
Stone-Safe Tech: Focused energy prevents cracking in emeralds, pearls, and opals.
HD Visualization: Integrated 10X/20X microscope for a crystal-clear workspace.
Cold-Welding Excellence: Concentrated laser energy ensures a minimal heat-affected zone (HAZ), preventing mold warping or annealing.
High-Strength Bonding: Achieve a perfect metallurgical bond that withstands high-pressure injection and casting cycles.
Versatile Material Support: Optimized for S136, SKD11, NAK80, H13, and other specialized tool steels.
Advanced Observation: Equipped with a 10X/20X high-definition microscope for pinpoint accuracy on intricate corners and textures.

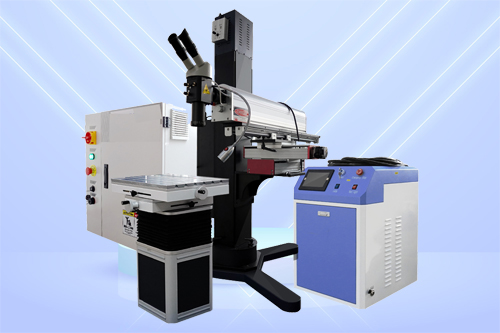

Utilizing advanced YAG pulse technology, our machines deliver precise energy to spots as small as $0.2\text{mm}$. This localized heating prevents mold warping, sink marks, or thermal annealing, ensuring the integrity of your high-value tools.
We use UK-imported ceramic gold-plated cavities and high-performance Xenon lamps. This ensures a more stable laser output, higher photoelectric conversion efficiency, and a service life exceeding 10 years.
Designed for industrial versatility, our reinforced workbench can support heavy molds up to $500\text{kg}$. With smooth 3-axis motorized control, positioning large automotive or appliance molds becomes effortless and safe.
Equipped with a 10X High-Definition Microscope and a synchronized CCD Monitoring System. This dual-view setup reduces operator eye fatigue and allows for microscopic precision during complex crack and corner repairs.
Our integrated $3\text{P}$ high-capacity industrial water chiller ensures constant temperature control. Even in high-temperature factory environments, the machine maintains 24/7 stable performance without energy decay.
Fully compliant with CE and ISO standards, our machines support global voltage customization ($110\text{V}/220\text{V}/380\text{V}$). We offer remote technical assistance and multi-language interfaces to ensure seamless integration into your production line.
Specifications | A200 | A400 | A500 |
Laser Power | 200W | 400W | 500W |
Max. Single Pulse Energy | 75J-80J | 100J-110J | 120J-140J |
Power Supply | AC 220V, 50/60Hz | AC 380V, 50/60Hz | |
Machine Weight | Approx. 300 kg | Approx. 350 kg | Approx. 450 kg |
Pulse Frequency | 1 – 20 Hz | ||
Pulse Width | 0.1 – 20 ms | ||
Welding Wire Diameter | ⌀ 0.1 – 0.5 mm | ||
Laser Wavelength | 1064 nm | ||
Observation System | Microscope & CCD Camera | ||
X / Y / Z Axis Travel | 300×200×400mm | ||
X / Y Axis Drive Mode | Manual Adjustment | ||
Z Axis Drive Mode | Motorized Adjustment | ||
Positioning Accuracy | ±0.03mm | ||
Repeatability | ±0.01mm | ||
Cooling System | Industrial Water Chiller | ||
Dimensions (L*W*H) | 700 × 550 × 950 mm | ||
Intuitive Touch Interface: A high-definition, responsive touchscreen with an easy-to-navigate menu, making professional welding accessible to everyone.
Advanced Wobble Function: Built-in dual-axis wobble control allows for adjustable swing width (0-5mm), ensuring stronger and more aesthetic weld seams.
Multi-Language Support: Pre-installed with 20+ global languages (English, Spanish, German, Russian, etc.) to serve workshops worldwide.
Process Parameter Memory: Save up to 50 custom welding recipes for different materials (Stainless Steel, Aluminum, Copper) to switch tasks in seconds.
Micro-Welding Excellence: Create weld spots as fine as 0.1mm, perfect for delicate filigree and intricate prong re-tipping.
Safe for Gemstones: Concentrated energy minimizes the heat-affected zone, allowing you to weld near heat-sensitive stones like pearls and emeralds safely.
Advanced Observation: Integrated 10X high-definition microscope provides a crystal-clear view for fatigue-free, precision work.
Universal Metal Support: Optimized for Gold, Silver, Platinum, Palladium, Titanium, and Stainless Steel.
Premium YAG Crystal: High-quality Nd:YAG rods deliver a stable beam with exceptional peak power for deep penetration and clean welds.
Gold-Plated Cavity: High-efficiency reflecting technology ensures uniform laser output and extends the service life of internal components.
Adjustable Pulse Shaping: Precisely tune pulse width and frequency to match the melting points of Gold, Platinum, and Silver.
Constant Energy Output: Intelligent closed-loop control prevents energy decay, ensuring every spot weld is identical from start to finish.
Dual Temperature Control: Independent cooling circuits for both the laser source and the welding head, preventing condensation.
Constant Temperature Stability: Precise cooling within $\pm 1$°C, ensuring stable laser output power and perfect weld consistency.
Heavy-Duty Compressor: Equipped with top-brand industrial compressors for rapid heat dissipation and low noise.
Built-in Safety Interlocks: Automatic alarms for water flow, high/low temperature, and level sensors to protect your core components.
