✔️ Zero Consumables
✔️ Ultra-Fast Speed (Up to 10,000mm/s)
✔️ Ideal for All Metals & Hard Plastics
Our Fiber Laser Marking Machine represents the cutting-edge of metal engraving technology. Equipped with world-class fiber laser sources (such as IPG, Raycus, or MAX) and a high-speed galvanometer system, it delivers exceptional beam quality and ultra-precise marking results. Whether you are engraving microscopic texts, complex logos, or deep serial numbers, this machine handles it with ease.
Compared to traditional printing or mechanical engraving, our fiber laser system is a 100% green technology. It operates entirely without consumables like inks or chemicals, ensuring a completely maintenance-free experience for up to 100,000 hours. The marks produced are permanent, wear-resistant, and highly legible, making it the perfect solution for product traceability.
Advanced fiber laser technology ensures sharp, clear, and permanent markings on a wide range of materials.
We use reliable laser sources and high-quality components to guarantee stable operation and long service life.
With high-speed galvanometer systems, our machines deliver fast processing, improving your production efficiency.
Simple interface and intuitive software allow operators to get started quickly with minimal training.
Fiber laser systems require minimal maintenance and offer up to 100,000 hours of working life, reducing operating costs.
We provide full technical support, training, and after-sales service to ensure smooth operation worldwide.

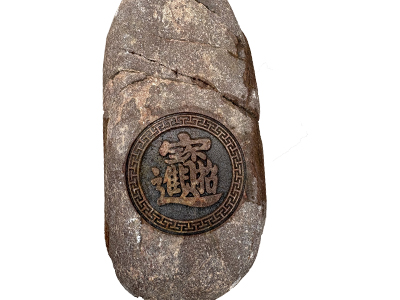

Our fiber laser marking machine delivers sharp and durable results across different materials.
Ideal for logos, serial numbers, barcodes and custom designs with fine detail and consistency.

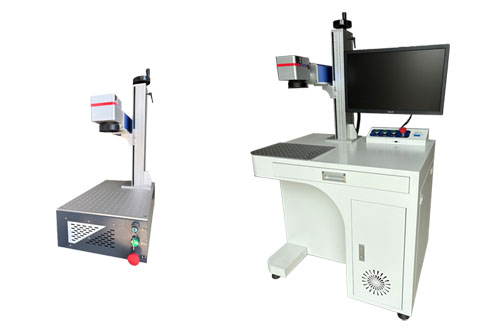

Option A: Desktop Type
Smaller footprint
Suitable for limited workspace
Option B: Benchtop Type
Larger working area
More stable for continuous production
The control system features a fully Chinese interface, compatible with files output from various software such as AutoCAD, CorelDRAW, and Photoshop. It can mark barcodes, QR codes, and graphic text, directly use SHX and TTF fonts, and automatically encode and print serial numbers, batch numbers, dates, etc.
Supported vector files: PLT.DXF, AI, DST, SVG, GBR, NC, JPC, BOT;
Bitmap files: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.
..

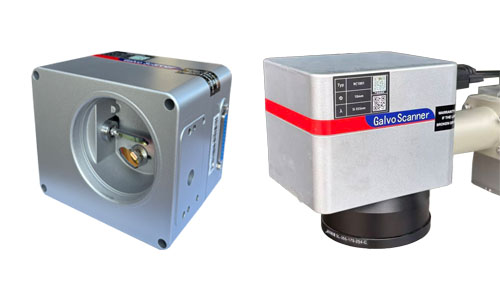

The fiber laser marking machine is equipped with a high-performance galvo scanning system, enabling fast and accurate beam positioning. It ensures smooth operation, high repeatability, and stable marking quality even during continuous production.
With rapid response and precise control, the system is ideal for fine marking applications such as logos, serial numbers, barcodes, and intricate patterns.
Employing acousto-optic Q-switched pulsed fiber lasers, standard configurations include renowned brands such as Raycus, MAX, and IPG. This industrial-grade marking and micromachining laser boasts a spot size of only 0.01mm. This series of pulsed lasers features high peak power, high single-pulse energy, high beam quality, and selectable spot diameter. Suitable for precision machining, scientific research, and other fields.
Optional MOPA pulsed fiber lasers are also available. This series features high average power, high peak power, selectable pulse widths from 2-500ns, adjustable repetition frequency from 1-2000kHz, selectable first pulse, selectable continuous mode, and online pulse width modification..

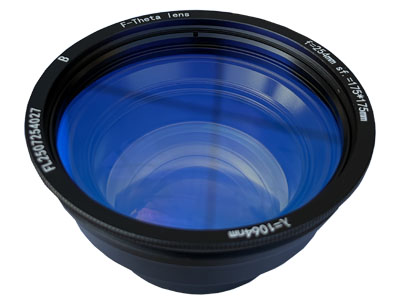

The machine is equipped with a high-quality F-theta lens, designed to ensure uniform spot size and consistent marking performance across the entire working area.
It provides excellent focusing capability, enabling clear and precise marking results even for fine details. Different lens options are available to meet various marking area requirements.
Marking Area Options: 110×110 mm / 150×150 mm / 200×200 mm
High Transmittance Optical Coating
Stable Performance with Minimal Distortion
The machine is equipped with a focal length ruler that helps users quickly and accurately adjust the working distance. It ensures the correct focal position for optimal marking quality.
With clear scale indication and easy operation, it improves setup efficiency and reduces manual adjustment errors, making it ideal for both beginners and experienced operators.
The fiber laser marking machine can be equipped with a high-efficiency dust extraction system that effectively removes smoke and fine particles generated during the marking process.
It helps maintain a clean working environment, protects the operator’s health, and ensures stable machine performance by preventing dust accumulation on key components.
Technical Parameters | Specification |
Model | SLG-F20 / SLG-F30 / SLG-F50 / SLG-F100 |
Laser Power | 20W / 30W / 50W / 100W |
Laser Wavelength | 1064 nm |
Marking Area | 110×110mm / 175×175mm / 200×200mm (Optional) |
Beam Quality | ≤1.5M² |
Max. Marking Speed | ≤ 7000 mm/s |
Repetition Frequency | 20-80 KHz |
Min. Character Size | 0.3 mm |
Min. Line Width | 0.01 mm |
Cooling System | Air Cooling |
Power Consumption | 500W – 1000W (Depends on laser power) |
Power Supply | AC 110V/220V ±10%, 50/60Hz |
Machine Weight | 80 kg – 120 kg (Varies by power and cabinet style) |
Tell us your materials, marking size, and requirements.
Our team will recommend the most suitable solution for your application.
