With a robust gantry structure and high-power laser integration, this system ensures consistent accuracy across extended cutting ranges.
A reliable solution for high-volume and large-format metal fabrication.

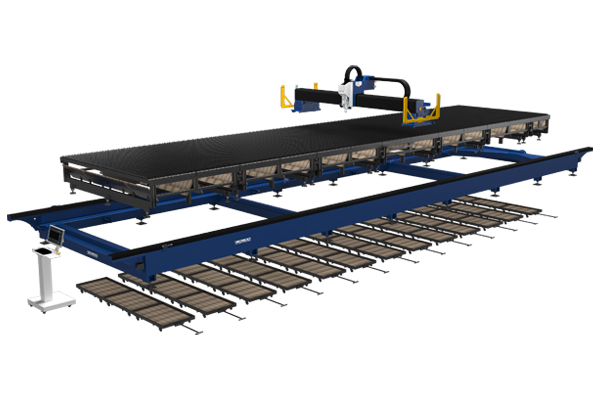

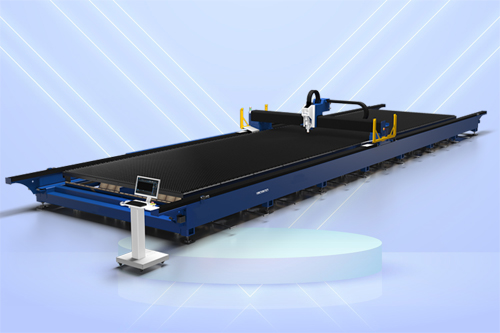

Engineered for large-scale metal fabrication, this fiber laser cutting machine is designed to handle extra-long and wide sheets with exceptional stability and precision.
With a robust gantry structure and high-power laser source, it delivers efficient, high-speed cutting on carbon steel, stainless steel, aluminum, and more.
Ideal for industries such as steel structures, shipbuilding, heavy machinery, and large equipment manufacturing.
Optional Configuration
Exchange Table
Automatic Loading System
Dust Extraction System
Bevel Cutting Function
Easily handle metal sheets up to 13m × 3m without repositioning, reducing manual handling and improving cutting accuracy.
Cut multiple parts or full-length materials in a single operation, greatly increasing throughput and saving production time.
Robust gantry design ensures high stability even during long-distance, high-speed cutting, maintaining precision over large areas.
Widely used in steel structures, shipbuilding, bridge construction, and heavy machinery manufacturing.
Minimize repositioning errors and optimize material usage, helping lower labor costs and reduce waste.
Available in various lengths, power options, and configurations to meet specific production requirements.
The machine tool main unit consists of a bed, crossbeam, Z-axis device, worktable, and air/water circuits. It adopts a gantry dual-drive structure with an open worktable. A safety light curtain to prevent accidental entry is installed on the crossbeam, further enhancing safety. The support bars feature a modular design, making maintenance easier and improving interchangeability.
Gantry Dual Drive
Heavy-Duty Bed Structure
Modular Worktable
Compared to traditional lasers, fiber lasers offer higher photoelectric conversion efficiency, lower power consumption, and higher beam quality. They feature a modular design with an integrated, fully enclosed optical module. The output fiber has a small core diameter, excellent beam quality, and advantages such as high cutting efficiency, fast perforation, and strong welding capabilities.
Key Advantages：
1、Stable Continuous Output
Ensures consistent cutting performance without energy fluctuation
2、High Cutting Efficiency
Faster cutting speed, especially suitable for medium and thick metal sheets
3、 Superior Beam Quality
Produces smooth edges and reduces post-processing
4、 Energy Efficient
Up to 30%+ electro-optical efficiency, reducing operating costs
5、 Low Maintenance
Fiber transmission system eliminates complex optical path adjustment
This is a dedicated CNC system for laser cutting, developed based on EtherCAT bus technology. It provides motion control, laser control, and cutting gas control. It is easy to use, feature-rich, and stable and reliable. The software includes automatic nesting functions, as well as advanced features such as "seamless micro-connection," "invisible piercing," and "circular center finding," meeting various processing needs.
Key Features:
1、High-Precision Motion Control
Ensures accurate positioning and smooth cutting paths for superior results
2、User-Friendly Interface
Easy operation with clear layout, reducing training time for operators
3、Intelligent Path Optimization
Automatically optimizes cutting routes to improve efficiency and reduce waste
4、Multiple File Format Support
Compatible with DXF, AI, PLT and other common design formats
5、Real-Time Monitoring
Displays cutting status, parameters, and system alerts in real time
6、Stable and Reliable Performance
Industrial-grade system ensures long-term continuous operation
The laser head with automatic focusing function shortens perforation time, improves perforation quality and cutting speed. It is simple, convenient, and fast, with full-cycle water cooling around the focusing components. It allows for high-power cutting without heat or fog, enabling small-volume and long-duration cutting, significantly extending the lifespan of the cutting head.
Key Features:
1、Auto Focus System
Automatically adjusts focal length for different materials and thicknesses, improving cutting efficiency and quality
2、High-Speed Response
Optimized design allows fast piercing and cutting, increasing overall productivity
3、Anti-Collision Protection
Equipped with collision protection to reduce damage risk and maintenance cost
4、Sealed Structure Design
Effectively prevents dust contamination and extends service life
5、Stable and Precise Cutting
Ensures smooth edges with minimal burr, reducing secondary processing
Engineered with a high-strength aerospace-grade aluminum alloy beam, the machine delivers exceptional rigidity while maintaining lightweight dynamics. The advanced dual-drive structure ensures perfectly synchronized motion on both sides, significantly improving positioning accuracy and cutting stability.
Compared to traditional single-drive systems, the dual-drive design effectively eliminates gantry racking, enabling smoother high-speed operation and superior precision, especially for large-format processing.
This optimized structural design guarantees:
Higher acceleration and faster response
Enhanced cutting accuracy and consistency
Improved long-term stability and reduced mechanical deformation
Ideal for high-speed, high-precision metal cutting applications.
The machine is equipped with a high-strength marble assembly platform, designed to ensure maximum structural stability during high-speed operation.
Compared with traditional steel structures, marble offers:
Excellent vibration absorption
Higher rigidity and stability
Resistance to deformation over time
This ensures consistent cutting accuracy, even during long-term continuous production.
Each machine undergoes precision alignment inspection using dial indicators, ensuring:
Accurate installation of guide rails
Perfect parallelism of motion system
Stable long-term operation
This process directly improves cutting accuracy and machine lifespan.
Each machine undergoes laser interferometer calibration to verify linear accuracy, positioning precision, and repeatability.
Compared with conventional measurement methods, this ensures:
Micron-level accuracy control
Perfect alignment of motion axes
Reliable performance for high-precision cutting applications
Every machine is calibrated before shipment
Explore the core specifications of our large format fiber laser cutting machine, designed to meet the demands of high-precision and heavy-duty metal processing.
Custom configurations are available to match different production requirements.
Items | Specification |
Model Number | GF-13030 (Ultra-Large Format) |
Working Area (L*W) | 13000mm × 3000mm |
Laser Power Options | 12kW – 60kW (High Power Fiber Laser) |
X/Y Positioning Accuracy | ±0.05mm/m |
X/Y Repositioning Accuracy | ±0.03mm |
Max. Linkage Speed | 100m/min |
Max. Acceleration | 1.0G |
Max. Table Load Capacity | 11,500 kg |
Drive System | High-Precision Rack & Pinion (Dual Drive) |
Power Supply | 3-Phase 380V 50/60Hz |
Auxiliary Gas Control | Automatic Proportional Valve (O2, N2, Air) |
Supported File Formats | DXF, AI, PLT, Gerber, LXD, etc. |
Power Requirements | 3-Phase 380V 50/60Hz (Customizable) |
Machine Footprint (LWH) | Approx. 16,500 × 4,150 × 2,000 mm |
