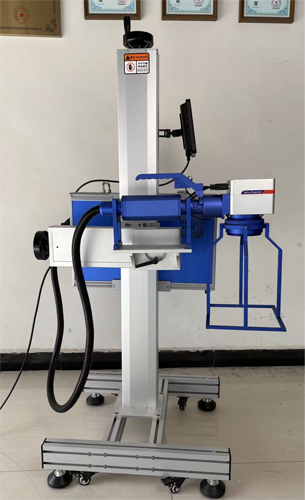

This dual-purpose laser marking machine combines handheld portability with desktop stability.
It allows you to switch freely between mobile marking and fixed high-precision work, meeting a wide range of industrial needs.
Use it as a handheld laser marker for large, heavy, or fixed workpieces, or switch to desktop mode for precise and repeatable marking tasks.
This flexible design helps reduce equipment costs while improving efficiency.
One Machine. Double Capability.
Mark Anywhere, Work Anytime.
Flexible Like Handheld. Precise Like Desktop.
2-in-1 Laser Marker for Maximum Efficiency
Handheld and desktop in one machine
Easily switch modes based on your needs
One machine replaces two
Stable marking in desktop mode
Ideal for on-site operations
Reduce equipment and labor costs
Our fiber laser marking machine delivers sharp and durable results across different materials.
Ideal for logos, serial numbers, barcodes and custom designs with fine detail and consistency.
Handheld Mode：
Ideal for marking large, immovable, or heavy objects such as steel structures, machinery, and pipes.
Desktop Mode：
Perfect for small parts, batch production, and applications requiring high accuracy and consistency.
This 2-in-1 laser marking machine is equipped with an advanced touchscreen control system, allowing users to operate the machine directly without an external computer.
The intuitive interface makes it easy to edit text, adjust parameters, and start marking with just a few taps, significantly improving efficiency and reducing the learning curve.
Ideal for both beginners and experienced operators, it ensures fast setup, smooth operation, and reliable performance in any working mode.
Supported vector files: PLT.DXF, AI, DST, SVG, GBR, NC, JPC, BOT;
Bitmap files: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.
..
The fiber laser marking machine is equipped with a high-performance galvo scanning system, enabling fast and accurate beam positioning. It ensures smooth operation, high repeatability, and stable marking quality even during continuous production.
With rapid response and precise control, the system is ideal for fine marking applications such as logos, serial numbers, barcodes, and intricate patterns.
Employing acousto-optic Q-switched pulsed fiber lasers, standard configurations include renowned brands such as Raycus, MAX, and IPG. This industrial-grade marking and micromachining laser boasts a spot size of only 0.01mm. This series of pulsed lasers features high peak power, high single-pulse energy, high beam quality, and selectable spot diameter. Suitable for precision machining, scientific research, and other fields.
Optional MOPA pulsed fiber lasers are also available. This series features high average power, high peak power, selectable pulse widths from 2-500ns, adjustable repetition frequency from 1-2000kHz, selectable first pulse, selectable continuous mode, and online pulse width modification..
The machine is equipped with a high-quality F-theta lens, designed to ensure uniform spot size and consistent marking performance across the entire working area.
It provides excellent focusing capability, enabling clear and precise marking results even for fine details. Different lens options are available to meet various marking area requirements.
Marking Area Options: 110×110 mm / 150×150 mm / 200×200 mm
High Transmittance Optical Coating
Stable Performance with Minimal Distortion
The machine is equipped with a focal length ruler that helps users quickly and accurately adjust the working distance. It ensures the correct focal position for optimal marking quality.
With clear scale indication and easy operation, it improves setup efficiency and reduces manual adjustment errors, making it ideal for both beginners and experienced operators.
The fiber laser marking machine can be equipped with a high-efficiency dust extraction system that effectively removes smoke and fine particles generated during the marking process.
It helps maintain a clean working environment, protects the operator’s health, and ensures stable machine performance by preventing dust accumulation on key components.
Item | Specification |
Model | SLG-F20 / SLG-F30 / SLG-F50 / SLG-F100 |
Laser Power | 20W / 30W / 50W / 100W |
Laser Wavelength | 1064 nm |
Laser Source | Fiber Laser (Raycus / MAX / JPT Optional) |
Marking Area | 110×110mm / 175×175mm / 200×200mm (Optional) |
Beam Quality (M²) | ≤1.5 |
Max. Marking Speed | ≤ 7000 mm/s |
Repetition Frequency | 20-80 KHz |
Min. Character Size | 0.3 mm |
Min. Line Width | 0.01 mm |
Cooling System | Air Cooling |
Handheld Head Weight | Approx. 0.7 kg – 2.5 kg |
Power Supply | AC 110V/220V ±10%, 50/60Hz |
Machine Weight | 25 kg – 85 kg (Depending on configuration) |
Tell us your materials, marking size, and requirements.
Our team will recommend the most suitable solution for your application.
