Single-platform fiber laser cutting machine

Fiber laser cutting machine

welcome to

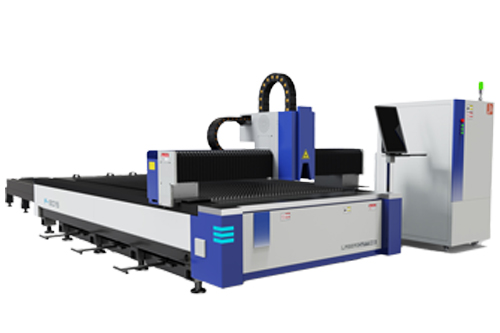

single-platform fiber laser cutting machine

It is mainly used for cutting medium and thick metal plates, features an open structure, and offers superior and stable performance at a very competitive price.

Applicable materials

Various metal materials are available, including carbon steel, stainless steel, aluminum alloy, brass, copper, pickled steel sheet, galvanized steel sheet, silicon steel sheet, electrolytic plate, titanium alloy, and manganese alloy.

Contact us

Product parameters

Model	3015D	4020D	6025D
Processing format	3000mm×1500mm	4000mm×2000mm	6000mm×2500mm
X/Y axis positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m
X/Y axis repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Maximum positioning speed	120m/min	100m/min	100m/min
Maximum acceleration	1.2g	1.0g	1.0g
Maximum load capacity of workbench	700kg	1200kg	3000kg
Machine weight	About 4.0T	About 4.5T	About 7.5T
Dimensions (LWH) mm	5000×2300×2000	6000×2900×2000	8500×3500×2000

Assembly process.

Marble assembly platform

Ensure the assembly accuracy of the beam cutting head..

Assembly process.

Dial indicator measurement accuracy

Ensure the assembly precision of every component..

Accuracy testing.

Laser interferometer

We guarantee that the equipment will achieve nanometer-level resolution in linear position, angle, straightness, perpendicularity, and parallelism measurements upon delivery.

Cutting head.

Intelligent cutting head

The laser head with automatic focusing function shortens perforation time, improves perforation quality and cutting speed. It is simple, convenient, and fast, with full-cycle water cooling around the focusing components. It allows for high-power cutting without heat or fog, enabling small-volume and long-duration cutting, significantly extending the lifespan of the cutting head..

CNC system.

Intelligent operating software

This is a dedicated CNC system for laser cutting, developed based on EtherCAT bus technology. It provides motion control, laser control, and cutting gas control. It is easy to use, feature-rich, and stable and reliable. The software includes automatic nesting functions, as well as advanced features such as "seamless micro-connection," "invisible piercing," and "circular center finding," meeting various processing needs.

Aluminum alloy beam.

Dual-drive beam

Featuring a gantry-type dual-drive structure, aluminum alloy crossbeam, and a high-quality steel welded bed, combined with excellent heat treatment and machining processes, this machine ensures both rigidity and long-term stability during operation.

Main functions

Technological advantages

Painless piercing

Improve the efficiency of thin sheet metal processing.

Seamless micro-connection

Batch cutting is incredibly easy.

Finding the center of a disk

Automatically locate and machine the center point on a circular plate.

One-stroke flying cut

Generating fly-cutting paths based on arbitrary shapes to improve overall machining efficiency.
