1. Professional dual-chuck structure, both using linked self-centering chucks, pneumatic automatic clamping for higher precision;
2. Stable equipment with a user-friendly interface, real-time processing status feedback, fully enclosed cutting area with safety doors and a viewing window to ensure orderly cutting;
3. High flexibility: Software programming allows for quick switching of processing graphics, adapting to small-batch, multi-variety production modes. It can perform not only straight cuts but also bevel cuts, hole drilling, surface engraving, and other complex processing;
4. High material utilization: Intelligent layout software optimizes the cutting path, minimizing material waste;
5. Supports overrunning cutting and ultra-short tail cutting.

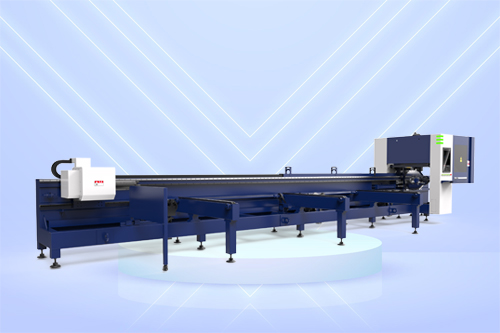

Model | P6024 |
Maximum length of material that can be loaded into the pipe | ≤6500mm |
maximum speed | 100R/min |
X/Y axis positioning accuracy | ±0.05mm/m |
X/Y axis repeat positioning accuracy | ±0.03mm |
Maximum operating speed | 100m/min |
Maximum operating acceleration | 1.0g |
Maximum load capacity (single tube) | 260kg(≤37kg/m) |
Clamping range | Round tube：φ10-φ240mm； Square tube：□10-□240mm |

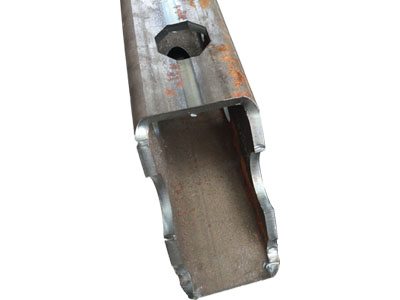

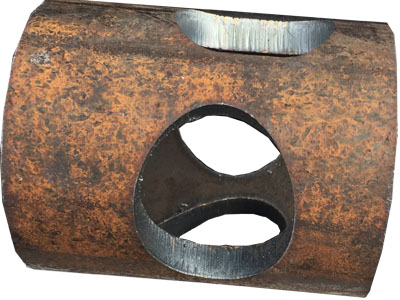

Range of wall thickness for processed materials | wall thickness：≥0.8mm |
Tail material length | ≥50mm(Under offside cutting conditions) |
The external dimensions of the host are approximately(L*W*H) mm | 11500×2800×2750 |

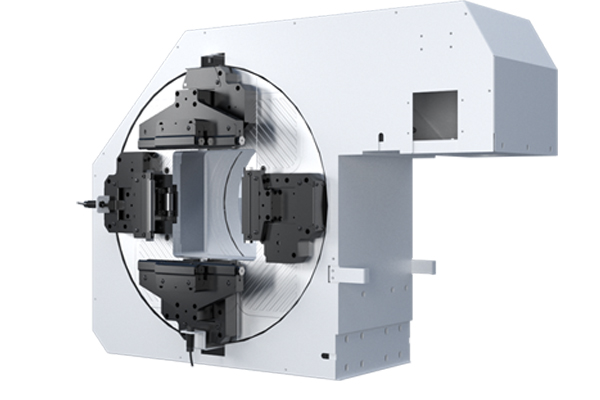

Equipped with a standard digital intelligent chuck, it intelligently identifies the size of the tube and the status of the jaws, enabling adaptive adjustment of clamping force;
It also features a rear chuck ventilation and dust extraction function, ensuring a cleaner workpiece tube and maintaining a clean and environmentally friendly processing environment..

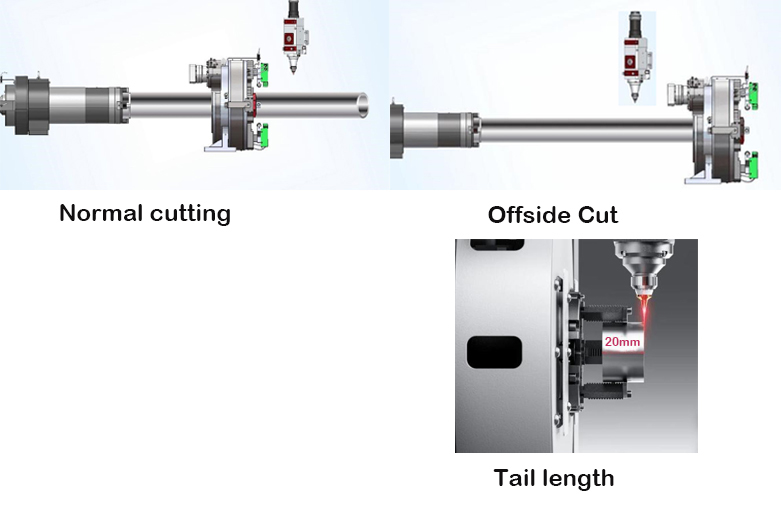

When the equipment cuts the last piece of tail material, the cutting head rises to avoid it, the front chuck moves to the right, and the cutting head is at the left end of the front chuck, completing the cutting head overshoot and achieving overshoot cutting;
0 tail material, the shortest tail material in the single-chuck mode is 0mm.
.
Ensure the assembly precision of every component..
We guarantee that the equipment will achieve nanometer-level resolution in linear position, angle, straightness, perpendicularity, and parallelism measurements upon delivery.
The laser head with automatic focusing function shortens perforation time, improves perforation quality and cutting speed. It is simple, convenient, and fast, with full-cycle water cooling around the focusing components. It allows for high-power cutting without heat or fog, enabling small-volume and long-duration cutting, significantly extending the lifespan of the cutting head..
This is a dedicated CNC system for laser cutting, developed based on EtherCAT bus technology. It provides motion control, laser control, and cutting gas control. It is easy to use, feature-rich, and stable and reliable. The software includes automatic nesting functions, as well as advanced features such as "seamless micro-connection," "invisible piercing," and "circular center finding," meeting various processing needs.
