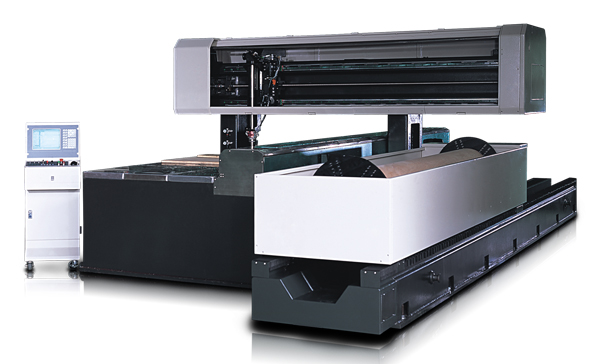

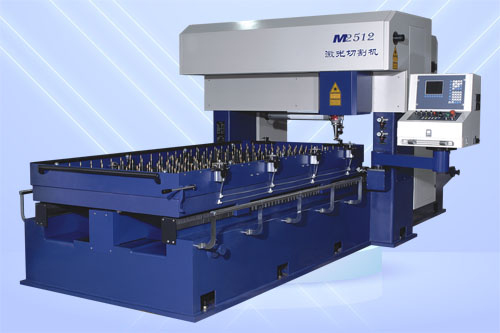

A Laser Die Board Cutting Machine is a specialized laser system designed for cutting die board slots used in the die-making process for packaging and printing industries. It uses a high-precision CO₂ laser beam to cut accurate slots in plywood die boards, allowing steel rule knives to be inserted precisely to form cutting dies.
This technology significantly improves the efficiency and accuracy of die board production compared with traditional mechanical cutting methods. It is widely used in the manufacturing of dies for carton boxes, color packaging boxes, labels, stickers, and various paper products.
No. | Project | Parameter | Unit |
1. | Maximum plate cutting size | 2500×1250 | mm |
2. | X-axis travel | 2550 | mm |
3. | Y-axis travel | 1250 | mm |
4. | Z-axis travel | 100 | mm |
5. | X, Y axis positioning accuracy | ±0.03/m | mm |
6. | X, Y axis repeat positioning accuracy | ±0.02/m | mm |
7. | Maximum positioning speed of machine tool | 24 | m/min |
8. | Laser power | Fast Axial Flow CO2 Laser | 1500-3000W |
9. | Optical path form | Hybrid optical path | / |
10. | Drive mode | Precision ball screw + linear guide | / |
11. |
Safety protection | Fully enclosed protection of cutting area | Safety interlock protection device |
12. | CNC system | PA 8000 | Import |
The laser die board cutting machine typically uses a CO₂ laser source to generate a focused laser beam. The cutting design created in CAD or die-making software is imported into the machine’s control system. The laser head then follows the programmed path to cut precise slots in the plywood die board.
The general workflow is:
Design Drawing → Import to Software → Automatic Positioning → Laser Cutting → Finished Die Board.

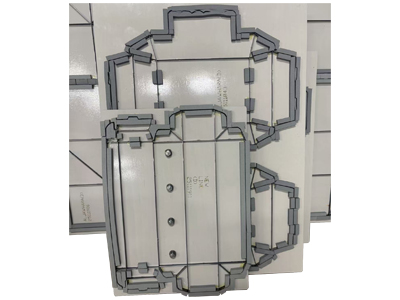

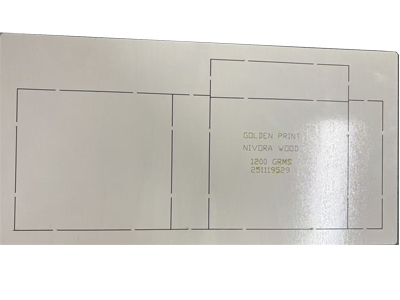

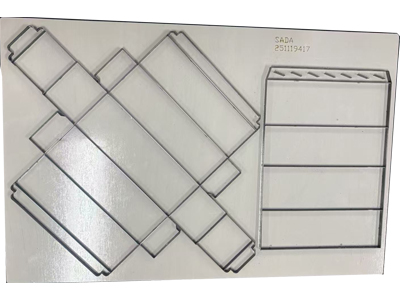

This process ensures extremely accurate slot widths and depths, enabling precise installation of steel rule knives and improving the final die-cutting quality.
1、High Cutting Precision
The laser beam produces narrow and accurate slots, ensuring precise placement of steel rule knives.
2、High Efficiency
Laser cutting is much faster than traditional manual or mechanical cutting, greatly improving die board production efficiency.
3、Smooth Cutting Quality
The slots are clean and smooth with minimal burning or deformation, making knife installation easier.
4、Automation and Easy Operation
Equipped with a computerized control system, the machine supports automatic cutting and simple operation.
5、Suitable for Complex Designs
Laser technology allows precise cutting of complex shapes and intricate packaging patterns.
Ensure the assembly precision of every component..
We guarantee that the equipment will achieve nanometer-level resolution in linear position, angle, straightness, perpendicularity, and parallelism measurements upon delivery.
The laser head with automatic focusing function shortens perforation time, improves perforation quality and cutting speed. It is simple, convenient, and fast, with full-cycle water cooling around the focusing components. It allows for high-power cutting without heat or fog, enabling small-volume and long-duration cutting, significantly extending the lifespan of the cutting head..
This is a dedicated CNC system for laser cutting, developed based on EtherCAT bus technology. It provides motion control, laser control, and cutting gas control. It is easy to use, feature-rich, and stable and reliable. The software includes automatic nesting functions, as well as advanced features such as "seamless micro-connection," "invisible piercing," and "circular center finding," meeting various processing needs.
