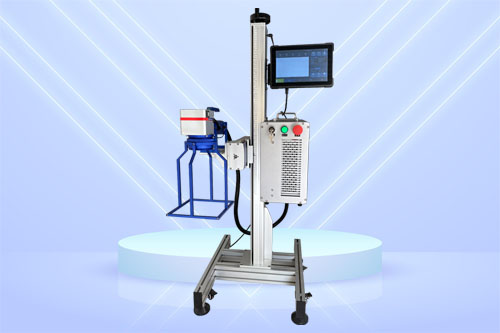

Handheld or desktop laser marking machine
Features a built-in touchscreen marking system, simple to operate, compact and portable.

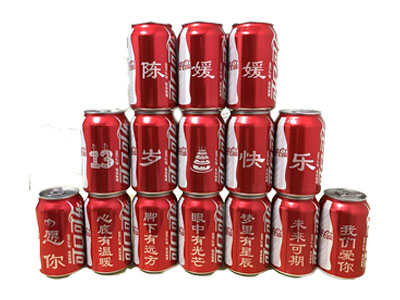

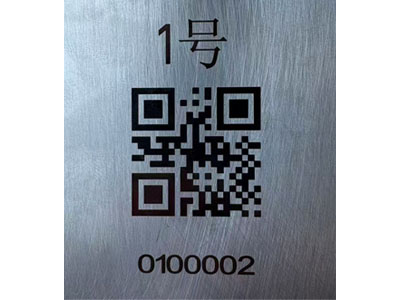

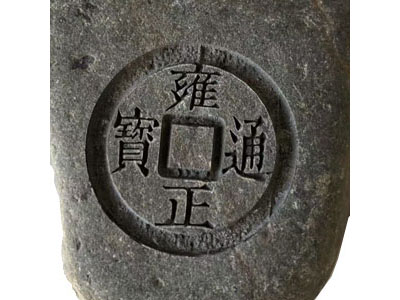

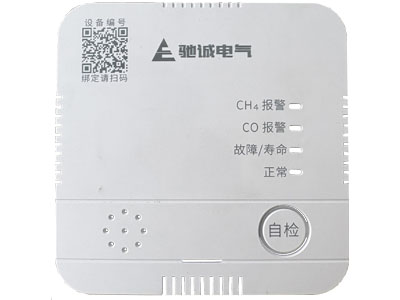

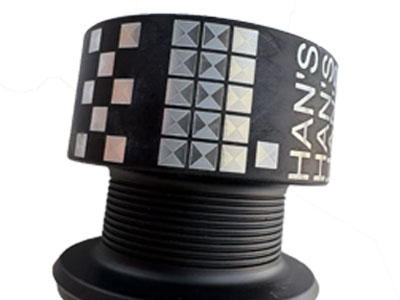

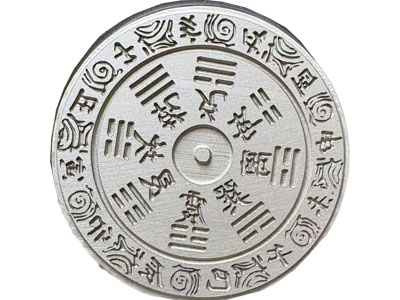

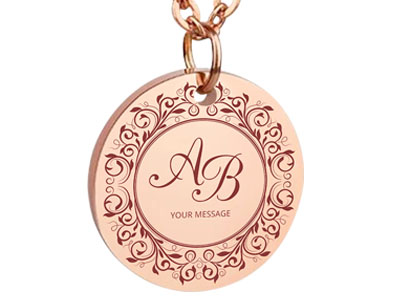

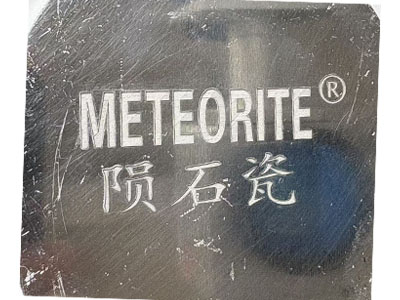

The optical fiber outputs the laser, and then the high-speed scanning galvanometer system is used to realize the marking function. The optical fiber laser marking machine features high photoelectric conversion efficiency, utilizes air cooling, boasts a compact design, delivers excellent output beam quality, and exhibits superior reliability. It can engrave metal materials and some non-metallic materials, and is mainly used in fields with high requirements for depth, smoothness, and precision.
Model | SLG-F20/SLG-F30/SLG-F50/SLG-F100/SLG-F200 | ||
Laser power | 20W/30W/50W/100W/200W | Laser wavelength | 1064nm |
Engraving area | 110mm×110mm 175mm×175mm 200mm×200mm |
Beam quality |
≤1.5M² |
Engraving speed | ≤7000mm/s | Laser repetition rate | 20-80KHz |
Minimum characters | 0.3mm | Minimum line width | 0.01mm |
Whole machine weight | 75 kg | Cooling system | Air cooling |
Power consumption | 500W | Power demand | 220V/50HZ/4A |
The integrated touchscreen interface, coupled with Ethernet connectivity, significantly enhances system stability. The separation of the display screen from the control board improves system scalability, allowing the control board to communicate smoothly with a PC even without being connected to the touchscreen, thus meeting diverse application needs.
Supported vector files: PLT.DXF, AI, DST, SVG, GBR, NC, JPC, BOT;
Bitmap files: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.
..
The high-speed digital galvanometer can work continuously for 24 hours, with good operational stability, high positioning accuracy, fast marking speed, and strong anti-interference ability..

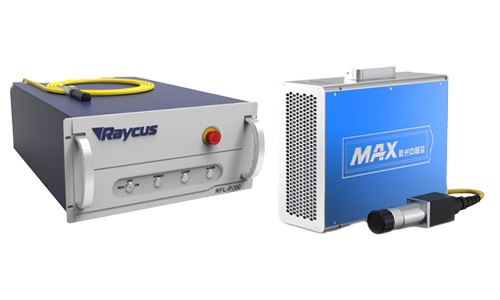

Employing acousto-optic Q-switched pulsed fiber lasers, standard configurations include renowned brands such as Raycus, MAX, and IPG. This industrial-grade marking and micromachining laser boasts a spot size of only 0.01mm. This series of pulsed lasers features high peak power, high single-pulse energy, high beam quality, and selectable spot diameter. Suitable for precision machining, scientific research, and other fields.
Optional MOPA pulsed fiber lasers are also available. This series features high average power, high peak power, selectable pulse widths from 2-500ns, adjustable repetition frequency from 1-2000kHz, selectable first pulse, selectable continuous mode, and online pulse width modification..
The standard configuration uses an F=254mm lens, offering strong focusing capabilities and a marking area of 175x175mm. Field lenses are available in various sizes, including 110mm×110mm and 200mm×200mm, and can be customized to meet specific needs..
Aluminum construction, standard 500mm scale, customizable to suit different work requirements；
The 360° rotatable head is easy to use and convenient, suitable for marking products of various shapes and sizes..
