Laser cleaning machine

welcome to

Laser cleaning machine

This advanced industrial equipment utilizes a high-energy laser beam to treat material surfaces, primarily serving to remove rust, oil stains, oxide layers, coatings, and other contaminants from both metallic and non-metallic substrates. Through the instantaneous energy interaction between the laser and the contaminant layer, impurities are rapidly vaporized, peeled away, or dislodged, thereby achieving highly efficient and precise surface cleaning without causing damage to the underlying substrate.

Compared to traditional cleaning methods—such as chemical cleaning, sandblasting, or mechanical grinding—laser cleaning stands out as a non-contact, consumable-free, and eco-friendly cleaning technology. The entire cleaning process requires no chemical reagents or abrasive materials, generates no wastewater or secondary pollution, and is therefore regarded as a more environmentally friendly and sustainable solution for industrial cleaning applications.

Handheld continuous laser cleaning machine

Product parameters

No.

Project

Parameter

1

Model

SLG-F1500/ F2000

SLG- F3000

SLG- F6000

2

Laser power

1500W/2000W

3000W

6000W

3

Focus on focal length

800mm

1800mm

4

Scan range

0-300mm

200-500mm

5

Power supply

AC220V,50Hz

AC380V,50Hz

6

Cooling method

Water cooling

Water cooling

7

Overall dimensions(L*W*H)

900mm*400mm*700mm

1100mm*600mm*1000mm

8

Equipment weight

About 75kg

About 120kg

control system.

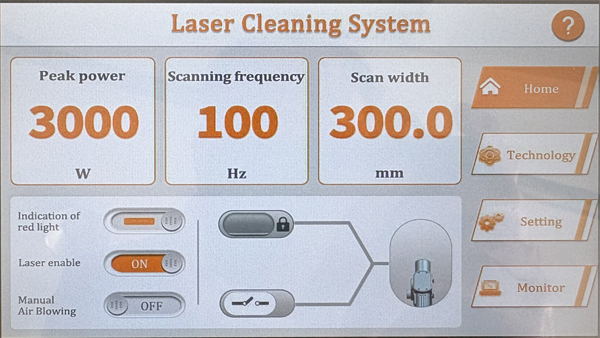

Laser cleaning system

This multi-functional welding machine combines welding, cutting, cleaning, and rust removal in one unit. It features an integrated full-touchscreen interface with a sensitive touchscreen and intelligent control system for convenient and quick operation. Touchscreen operation allows for easy adjustment of laser power, weld width, welding frequency, welding type, and language settings..

Laser cleaning system

Main configuration.

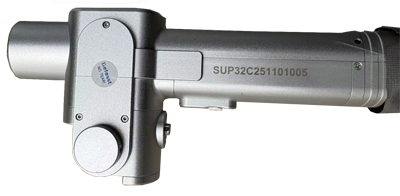

Handheld cleaning head

New design with strong dustproof and anti-interference performance, reducing lens wear; lightweight welding head for effortless welding;

Suitable for welding various complex seams and components, offering flexible, convenient, and precise red light positioning; simple operation and aesthetically pleasing welds;

Optional single or double wire feed..

..

Fiber laser

Main configuration.

Fiber laser

Compared to traditional lasers, fiber lasers offer higher photoelectric conversion efficiency, lower power consumption, and higher beam quality. They feature a modular design with an integrated, fully enclosed optical module. The output fiber has a small core diameter, excellent beam quality, and advantages such as high cutting efficiency, fast perforation, and strong welding capabilities..

Internal structure.

Equipment Structure

① Operating system

② Laser
③ Handheld welding head

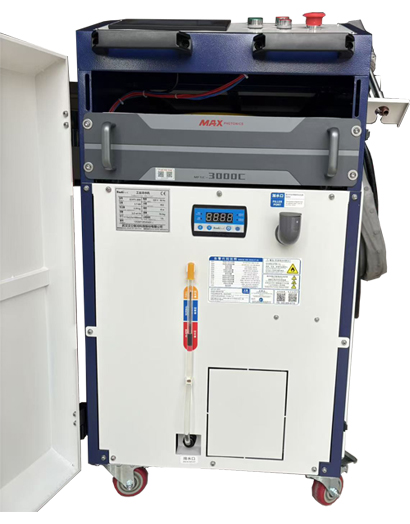

④ Water chiller

Cleaning samples

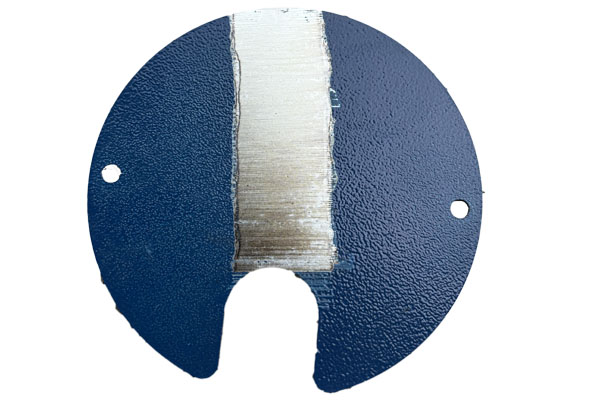

Powder Coating Removal

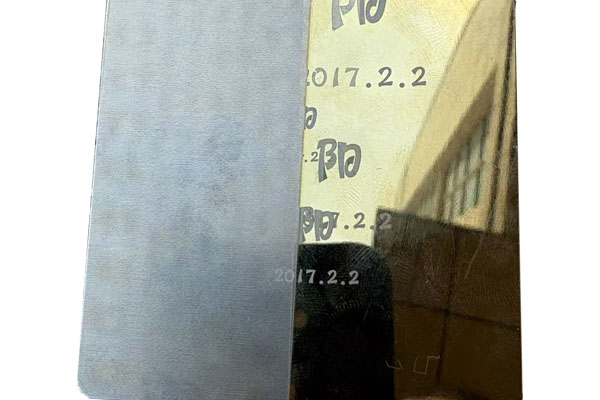

Stainless steel coating

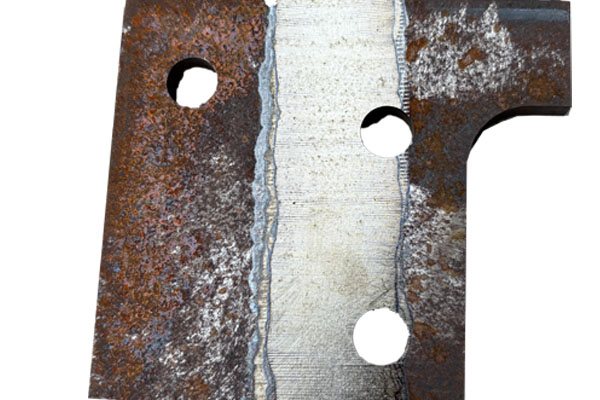

Carbon steel rust

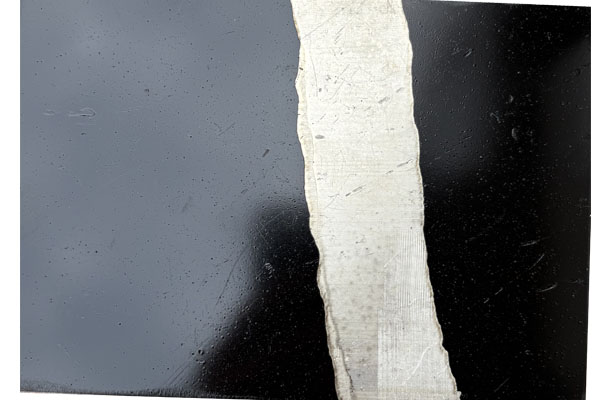

Aluminum alloy paint
