Fully automatic laser welding machines utilize high-energy pulsed lasers to weld objects. The high energy and high density of the laser pulses result in smooth welds, narrow weld seams, and small heat-affected zones, enabling fully automatic precision welding that is impossible with traditional processes.
Performance Features:
1. Ergonomic design with LCD screen display and centralized button operation for easier operation;
2. High laser power, small heat-affected zone, minimal deformation, and fast welding speed;
3. High-quality, smooth, and aesthetically pleasing weld seams, free of porosity, with post-weld material toughness at least equivalent to the base material;
4. Laser welding can perform spot welding, butt welding, stacking, and sealing on thin-walled materials and precision parts;
5. Four-dimensional ball screw worktable with an imported servo control system, with an optional rotary worktable, enabling automatic spot welding, linear welding, and circular welding;
6. Arbitrarily adjustable current waveform, allowing different waveforms to be set according to different welding materials, matching welding parameters and requirements to achieve the desired welding effect.
No. | Project | Parameter | ||
1 | Model | A200 | A400 | A500 |
2 | Laser power | 200W | 400W | 500W |
3 | Weld penetration | 0.1-1.0mm | 0.3-2.5mm | 0.4-3.0mm |
4 | Equipment power | 6KW | 12KW | 18KW |
5 | Power supply | AC220V，50/60Hz | AC380V，50/60Hz | |
6 | Spot adjustment method | Hand movement | ||
7 | Wavelength | 1064nm | ||
8 | Positioning observation system | Red light+high-definition CCD monitoring | ||
9 | Focus range | 100-180mm | ||
10 | Protective gas | Argon | ||
11 | Consumables | Xenon lamp, protective lens, purified water, argon gas | ||
12 | X. Y, Z maximum travel | 300×200×150mm | ||
13 | Positioning accuracy | ±0.03mm | ||
14 | Repeatability | ±0.01mm | ||
15 | Cooling method | Water cooling | ||
16 | Optional tooling | Rotating chuck | ||

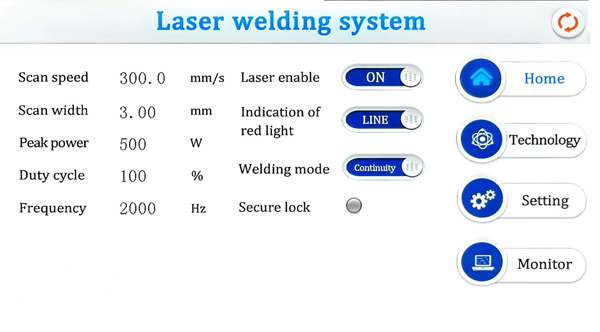

This multi-functional welding machine combines welding, cutting, cleaning, and rust removal in one unit. It features an integrated full-touchscreen interface with a sensitive touchscreen and intelligent control system for convenient and quick operation. Touchscreen operation allows for easy adjustment of laser power, weld width, welding frequency, welding type, and language settings..

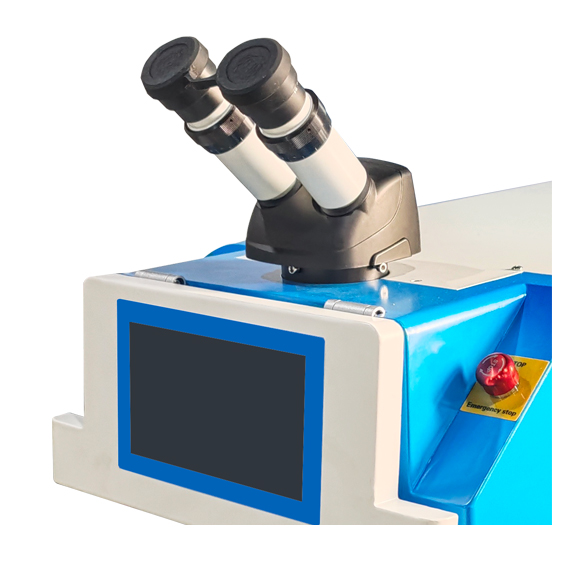

The microscope system is an essential component of a jewelry laser welding machine. It allows operators to clearly observe extremely small welding areas, ensuring precise positioning and high-quality welding results. Since jewelry pieces such as rings, chains, prongs, and small metal parts require micro-level accuracy, the microscope helps technicians perform delicate welding operations that are difficult to achieve with the naked eye.
During the welding process, the operator views the workpiece through the microscope while controlling the laser pulse with a foot pedal. The optical system is designed so that the microscope viewing axis is aligned with the laser beam, meaning the point you see through the microscope is exactly where the laser is applied. This coaxial design ensures accurate targeting and consistent welding quality.
1、High-Precision Optical Observation
Jewelry laser welders are typically equipped with a 10× binocular microscope, which provides a clear and magnified view of the welding area. This allows operators to detect tiny cracks, gaps, or defects in precious metal jewelry such as gold, silver, platinum, and titanium.
2、Binocular Design for Comfortable Operation
The binocular structure offers a natural stereoscopic view, helping operators judge depth and welding position more accurately. It also reduces eye fatigue during long working sessions, making it suitable for jewelry workshops and repair studios.
3、Adjustable Focus and Viewing Distance
The microscope system usually features adjustable focus and working distance. Operators can easily adapt the focus to different jewelry sizes and shapes, ensuring clear visibility of intricate parts such as prongs, clasps, or thin chains.
4、High-Quality Optical Lenses
Professional optical lenses with high light transmission deliver bright and sharp images. This ensures that even very small welding points remain clearly visible, allowing precise and controlled welding.
5、Optional CCD Camera System
Optional CCD camera and display screen. This allows the microscope image to be shown on a monitor, which is helpful for training, demonstrations, and long working hours.

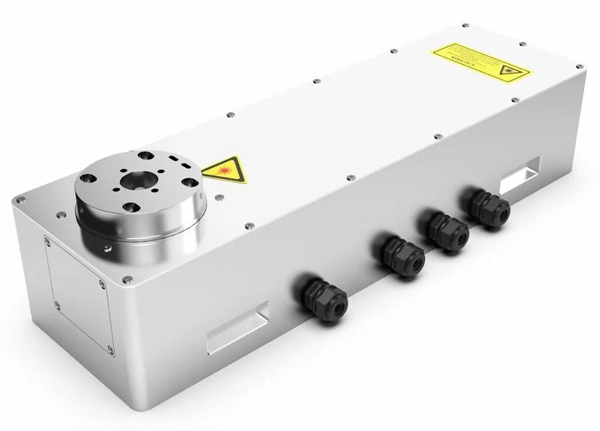

A laser is a laser that uses Nd:YAG (neodymium-doped yttrium aluminum garnet) crystal as the working medium. Energy is typically supplied to the laser crystal via a xenon lamp or semiconductor pump, causing stimulated emission of neodymium ions within the crystal, thus generating laser output. In pulsed mode, the laser releases high-energy pulses in an extremely short time, causing localized, instantaneous melting of the material, making it ideal for precision machining.
Intelligent fully automatic wire feeder;
Adjustable digital display, manual wire feeding and retraction, smooth and fast wire extraction;
Compatible welding wires: 0.8/1.0/1.2/1.6mm;
Optional single or double wire feeder..

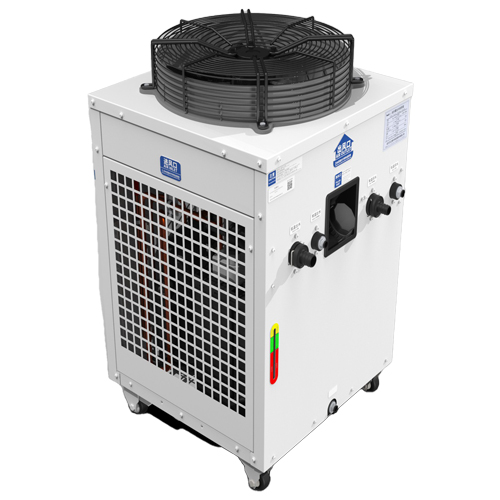

Featuring an integrated design, it offers two temperature control modes and various settings and fault display functions. The dual independent temperature control modes can meet the different cooling requirements of the laser and welding head, simultaneously cooling both the laser and optical components. It also boasts multiple alarm protection functions, such as compressor delay protection, overcurrent protection, water flow alarm, and over/under temperature alarms.
